Working principle

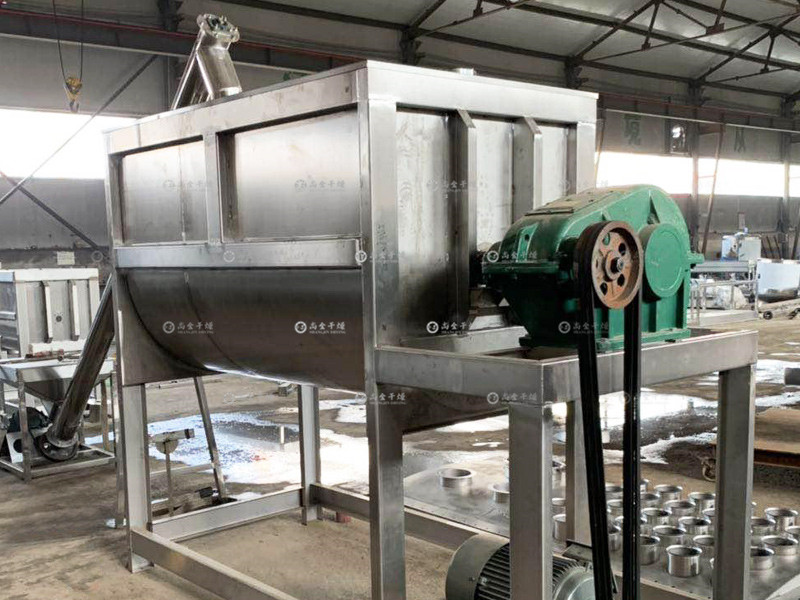

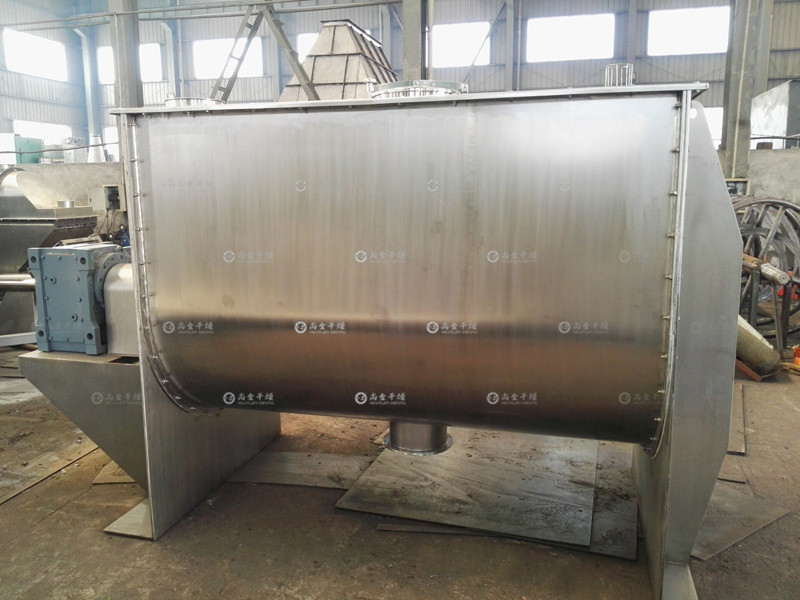

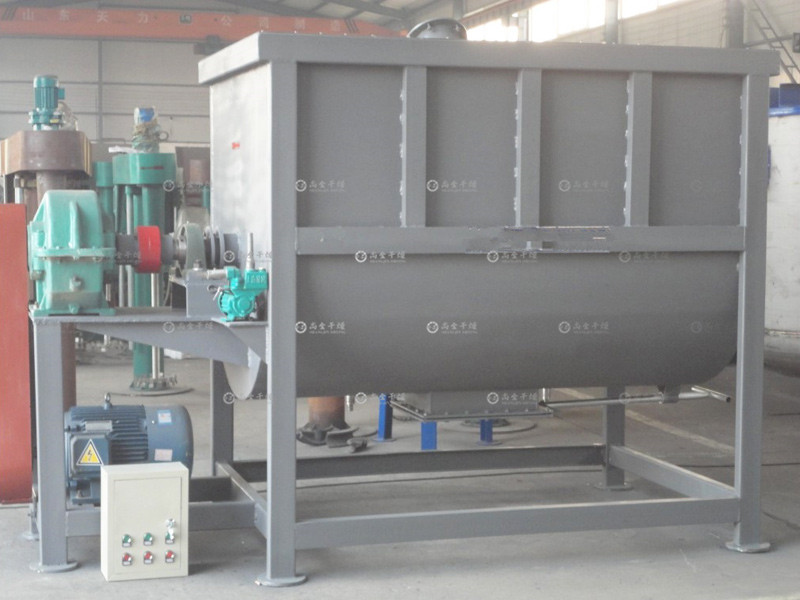

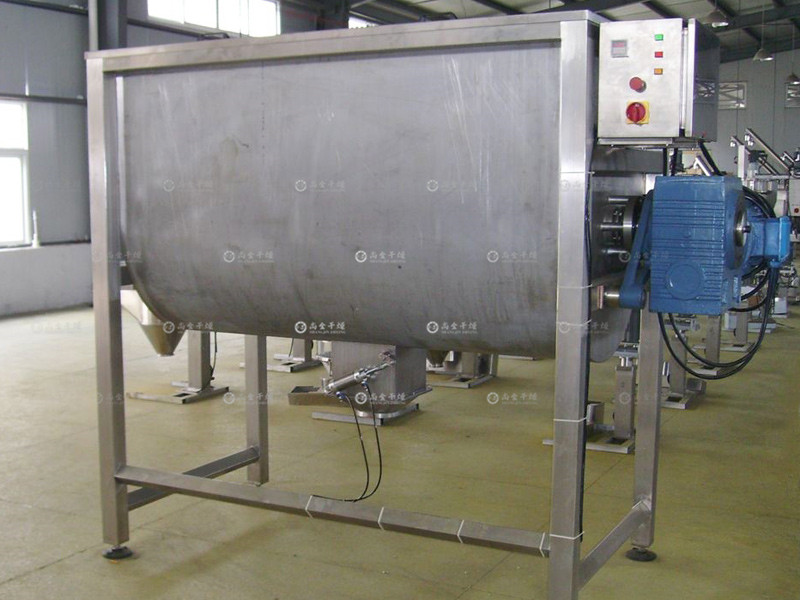

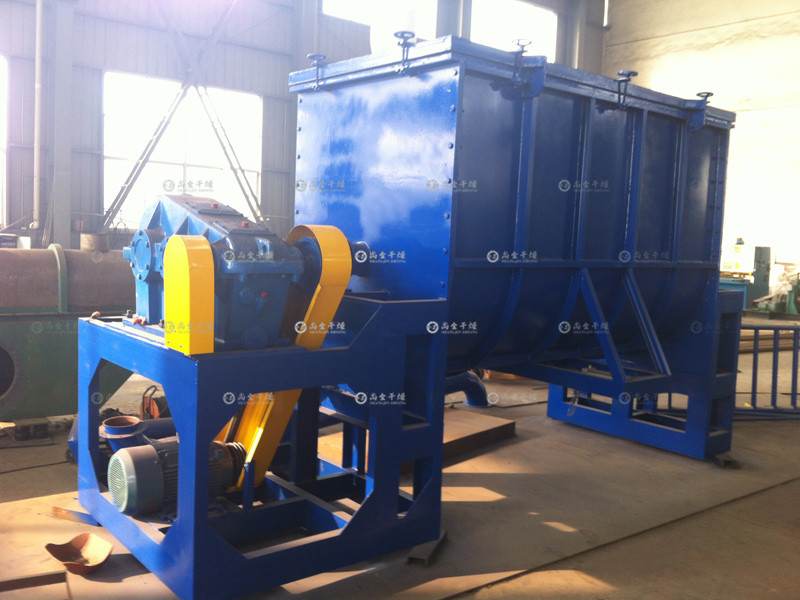

This model is composed of containers, spiral mixing blades and transmission parts: spiral blades are generally made into two or three layers, the outer spiral collects materials from both sides to the center, and the inner spiral transports materials from both sides of the center to form convection mixing.
Performance characteristics
◎ Large loading coefficient and small equipment area.
◎ It is difficult to clean when mixing sticky or cohesive materials.
Applicable materials
The spiral belt mixer is generally used for mixing sticky or cohesive powder particles and adding liquid and paste materials to the powder particles. At the same time, due to the difficulty of cleaning sticky materials, it is suitable for mixing in situations with large output and infrequent variety change.
| Model and specification | WLDH-0.1 | WLDH-0.3 | WLDH-0.5 | WLDH-1 | WLDH-1.5 | WLDH-2 | WLDH-3 | WLDH-4 | WLDH-6 | WLDH-8 | WLDH-10 |
| One-time mixing(kg) | 30-50 | 100-150 | 200-300 | 400-600 | 600-900 | 800-1200 | 1200-1800 | 1600-2400 | 2400-3600 | 3200-4800 | 4000-6000 |
| Motor power(kg) | 1.5-4 | 3-3.5 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 37-55 |
| Equipment weight(kg) | 300 | 500 | 900 | 1400 | 1900 | 2500 | 3100 | 3600 | 5300 | 6800 | 7800 |
Note: The above products are made of carbon steel C and stainless steel P.
