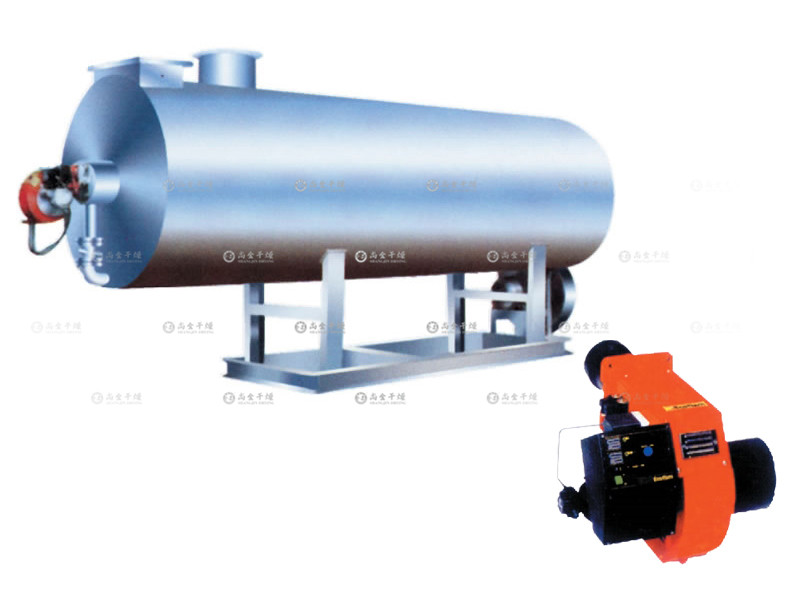

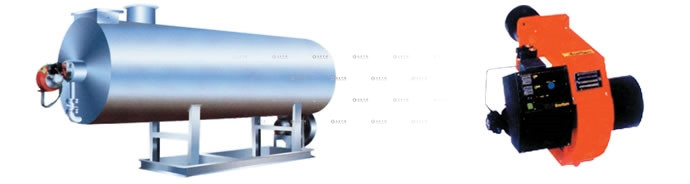

RLY series oil-fired hot-blast stove
The fuel oil of RLY series oil-fired hot-blast stove is burned through the burner to produce high-temperature gas. The heat of high temperature gas is transferred to the heated air by means of the hot blast furnace with enhanced heat exchange measures, and the temperature of high temperature gas is reduced to 250 ℃ after heat emission, and then discharged into the atmosphere.
Hotline:
+86151-6111-8388
Details

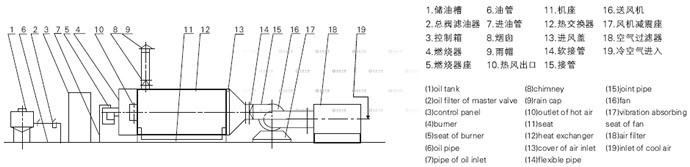

Working principle
  The fuel is burned through the burner to produce high-temperature gas. The heat of high temperature gas is transferred to the heated air by means of the hot blast furnace with enhanced heat exchange measures, and the temperature of high temperature gas is reduced to 250 ℃ after heat emission, and then discharged into the atmosphere. The air to be heated is forced into the hot air stove through the optional blower, and the temperature rises to the rated value after heat absorption and is sent out from the hot air outlet. When the hot air temperature reaches the upper limit of the rated temperature, the burner will automatically stop burning or automatically turn to small flame combustion. When the hot air temperature decreases to the lower limit of the rated temperature, the burner will re-ignite or turn to large fire combustion. The heating speed can be achieved by adjusting the opening of the inlet valve.



Parameters



ModelBurner modelFuel quantity kg/hHeat supply 104kcal/hOverall dimension L×W×HmmHot air port L×WmmAll up kg
RLY1RIELLO.G3/DL3FS1.3-1.611200×1200×1600Φ200460
RLY4RIELLO.G10/DL10FS5-6.541700×1300×1600Φ250850
RLY10RIELLO.G20/DL23FS13-16102300×1568×1870Φ3002200
RLY20RIELLO 1G/DL34FS26-32202800×1568×1870Φ4002670
RLY30RL50/DL55FT39-48303400×1568×1870Φ4503060
RLY40RL70/DL75FT52-64404440×1768×2070Φ5505600
RLY60RL100/DL100FT78-96605140×1868×2070Φ6008460
RLY100PRESS 4G/DL 120FT130-1401006440×2480×2300550×60012800
RLY160P300/DL250FT200-2701607470×2920×3480750×90015780
RLY200P300/DL300FT260-3002008175×2920×3480750×90018500
RLY360G1510480-6203609300×2920×3480900×120021000

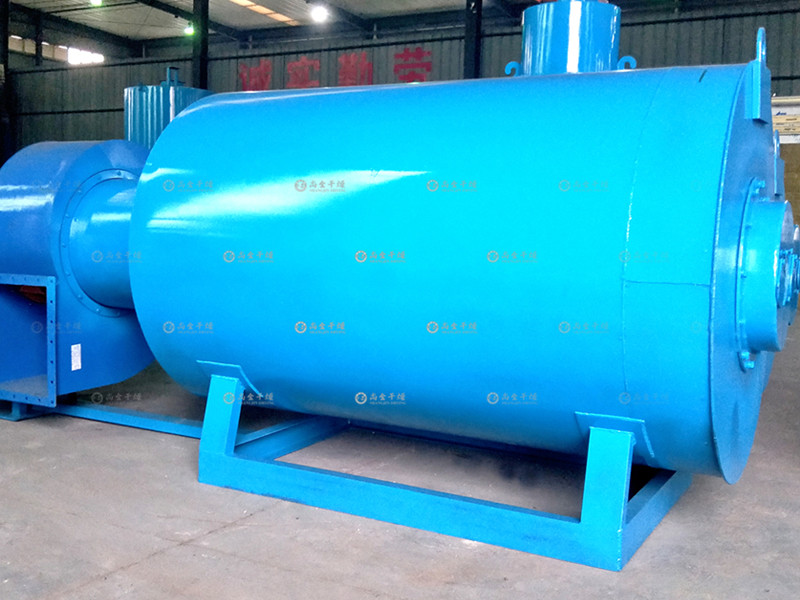

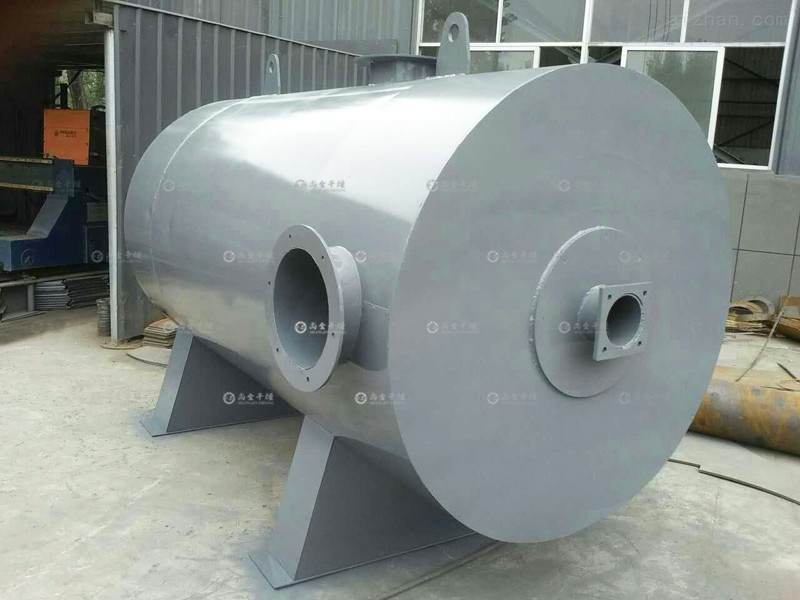

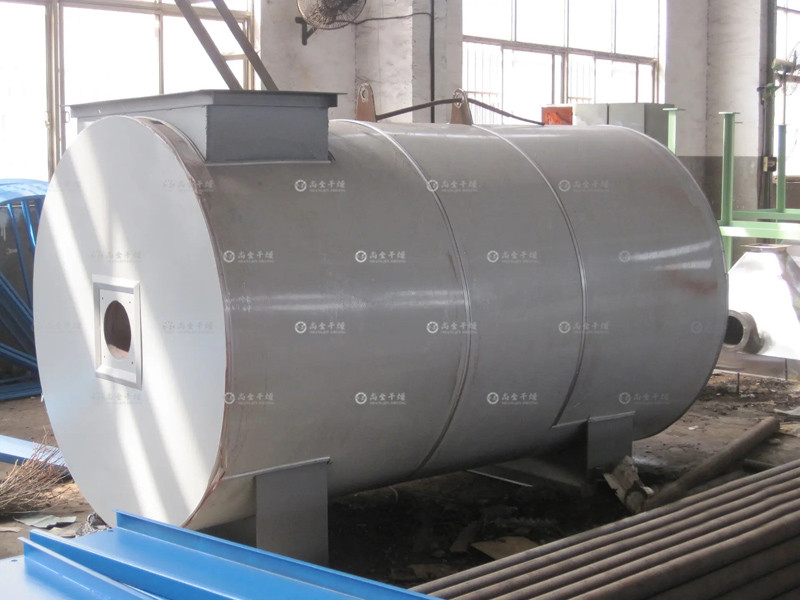

Photo Gallery
