VHJ series mixer
The mixing cylinder structure of the VHJ series mixer is unique, with high mixing efficiency and no dead corners. The cylinder is made of stainless steel material, with polished inner and outer walls, beautiful appearance, uniform mixing, and a wide range of applications. This machine is used for mixing dry material particles in industries such as medicine, chemical, food, metallurgy, etc.
Hotline:
+86151-6111-8388
Details




Performance characteristics

  The mixing cylinder has unique structure, high mixing efficiency, no dead angle, the cylinder is made of stainless steel, the inner and outer walls are polished, beautiful appearance, uniform mixing, and wide use.

Applicable materials

  This machine is used for mixing dry material particles in medicine, chemical, food, metallurgy and other industries.


Parameters



Specification ItemsTotal Volume
L
Working volume
L
Inventory
kg
Feeding speed
rpm
Power
kw
Weight
kg
VHJ-50502515250.55500
VHJ-1501507545200.75650
VHJ-30030015090201.1820
VHJ-500500250150181.51250
VHJ-100010005003001531800
VHJ-150015007504501242100
VHJ-200020001000600125.52450
VHJ-30003000150090095.52980
VHJ-400040002000120097.53300
VHJ-500050002500150087.53880
VHJ-60006000300018008114550
VHJ-80008000400024006155200
VHJ-100001000050003000618.56000
VR

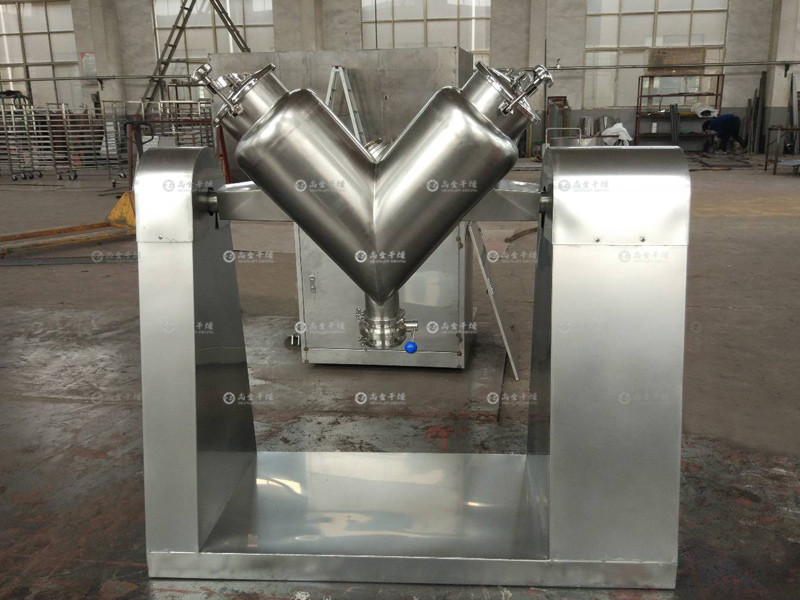

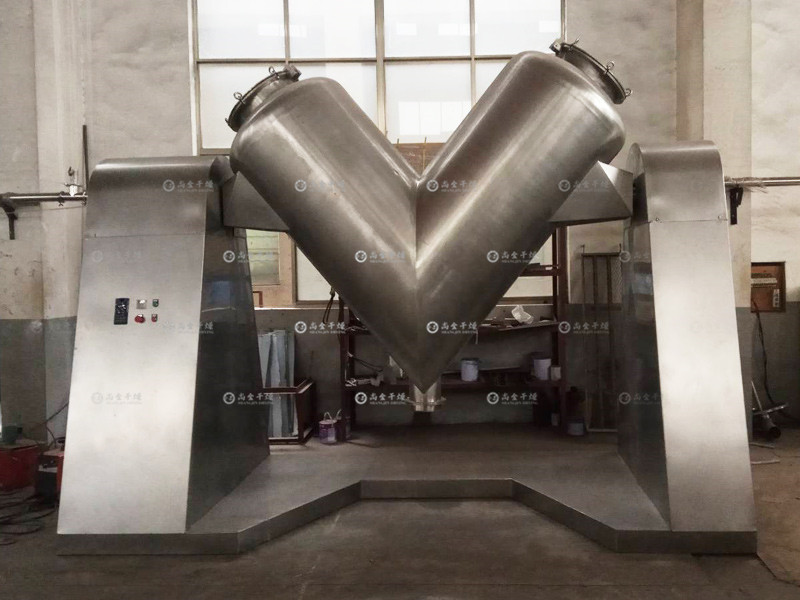

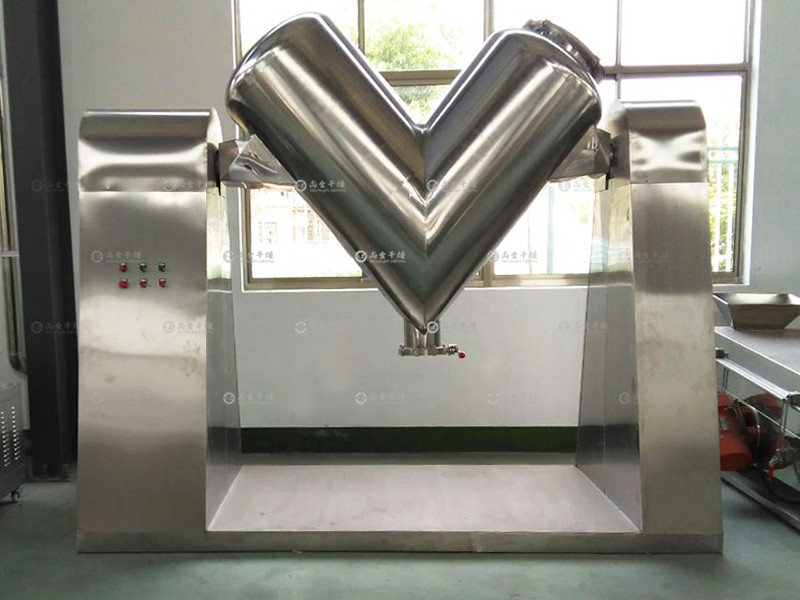

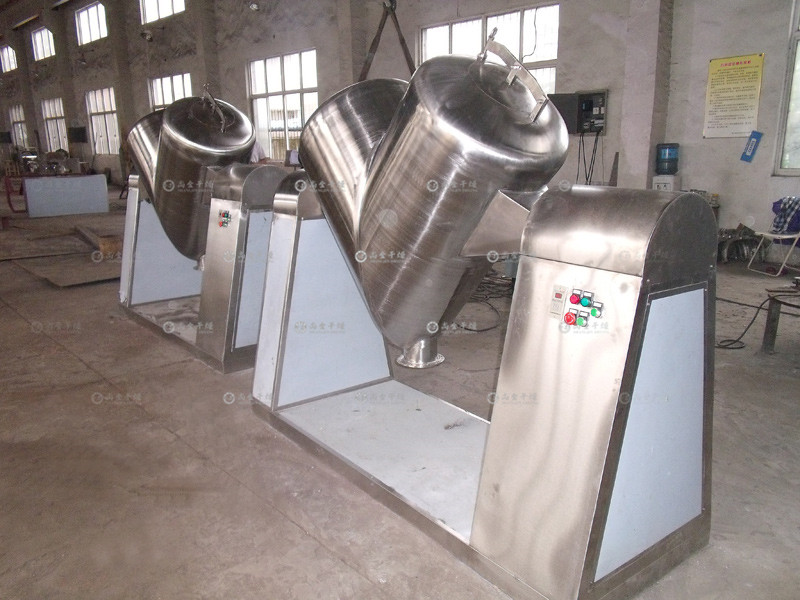

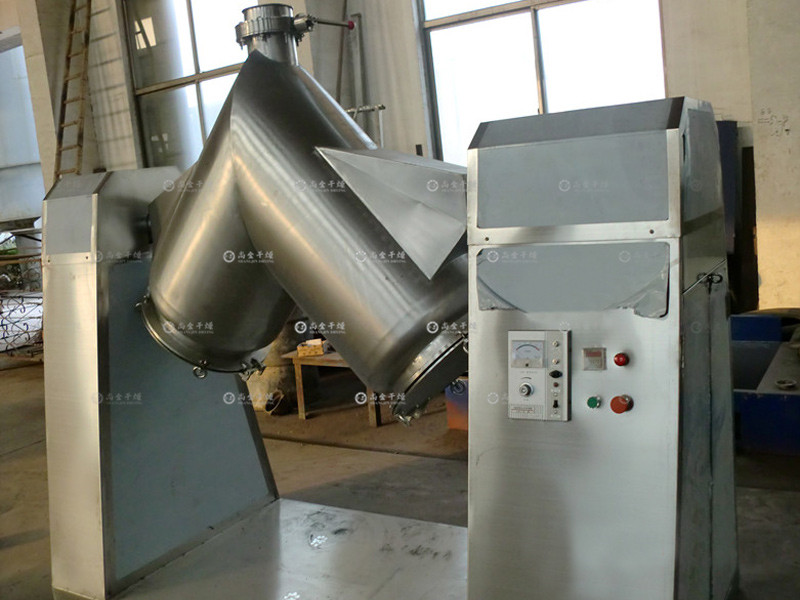

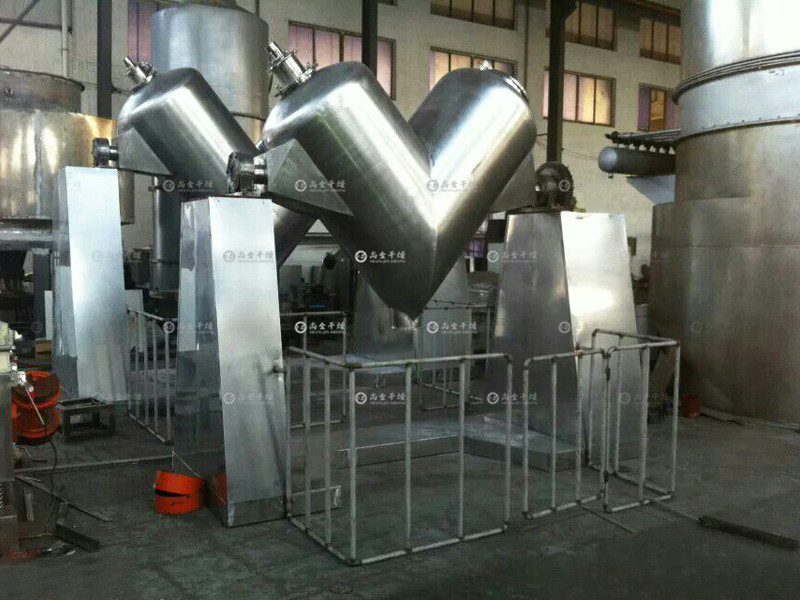

Photo Gallery
