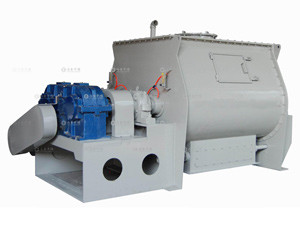

WZ series weightless mixer
WZ series non-gravity mixer is characterized by strong and efficient mixing. The two mixing in the horizontal cylinder rotate in the opposite direction at the same speed. The specially arranged blades ensure the radial, circumferential and axial movement of materials, forming a compound cycle, and achieving uniform mixing in a very short time.
Hotline:
+86151-6111-8388
Details




Working principle
  This series of mixers is characterized by strong and efficient mixing. The two mixers in the horizontal cylinder rotate in the opposite direction at the same speed. The specially arranged blades ensure the radial, circumferential and axial movement of materials, forming a compound cycle, and achieving uniform mixing in a very short time.
Product featuresa.jpg

1. High mixing accuracy, high speed, low energy consumption, and sealable operation.

2. Pneumatic, electric and manual discharge mode.

3. Atomization device can be arranged on the cylinder cover to realize solid-liquid mixing.

Scope of application
  Drying and mixing of chemicals, detergents, coatings, resins, glass silicon, pigments, pesticides, fertilizers, feeds, feed additives, wheat flour, milk powder, spices, trace ingredients, coffee, salt, additives, plastics, and various sizes and powders.

Parameters



Model and specificationWZ-0.05WZ-0.1WZ-0.3WZ-0.5WZ-1WZ-2WZ-3WZ-4WZ-6
Primary mixing kg24-3040-60120-180200-300400-600800-12001200-18001600-24002400-3600
Installed power kw2.234-5.55.5-7.57.5-1111-1518.5-2222-3030-37
Equipment weight kg25036075088021002740380051006200

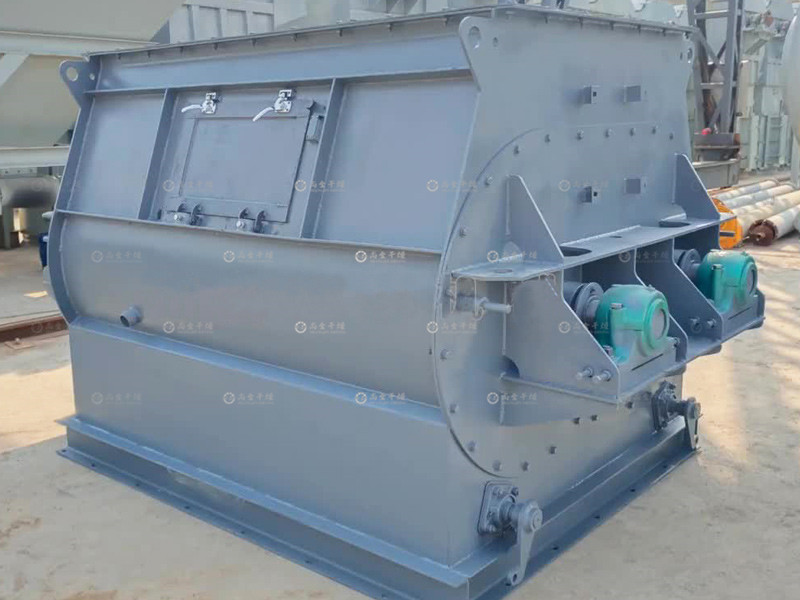

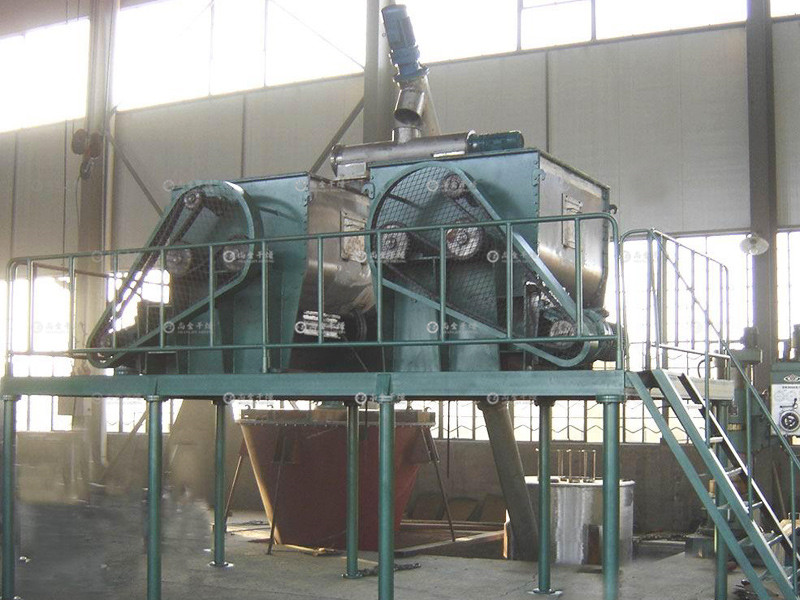

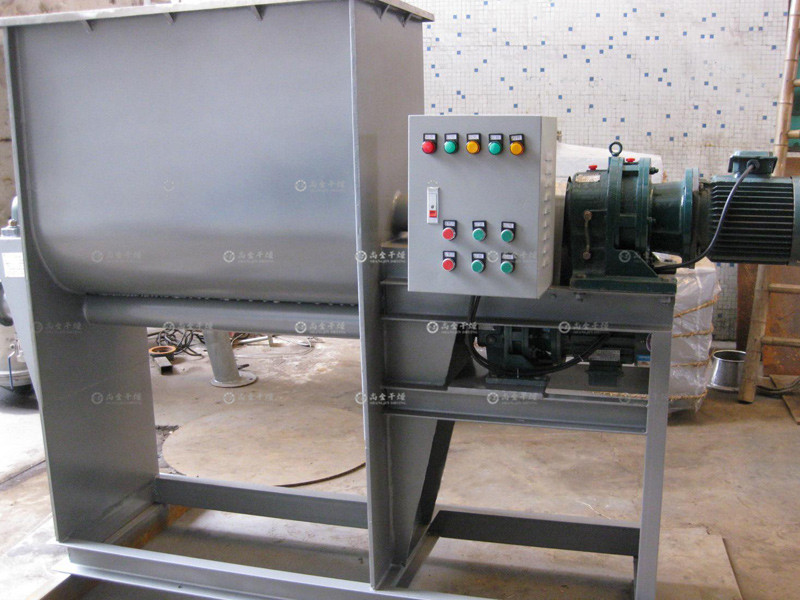

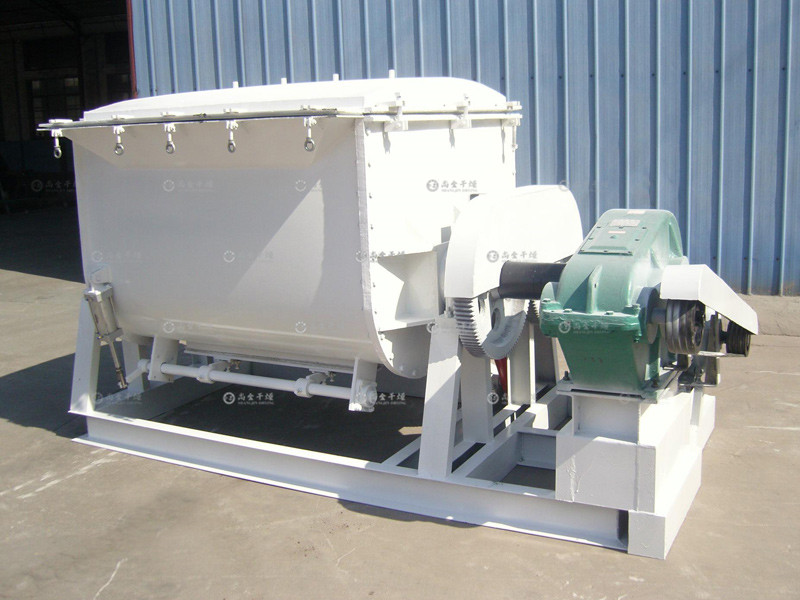

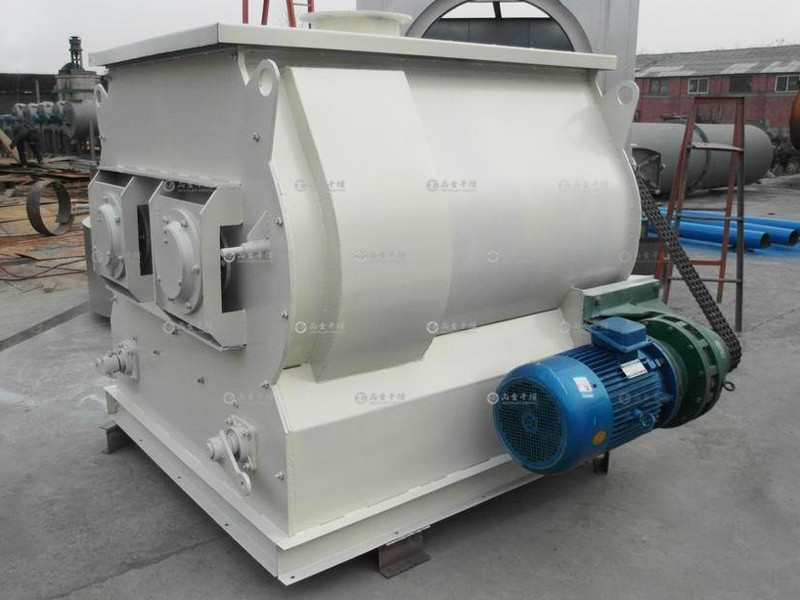

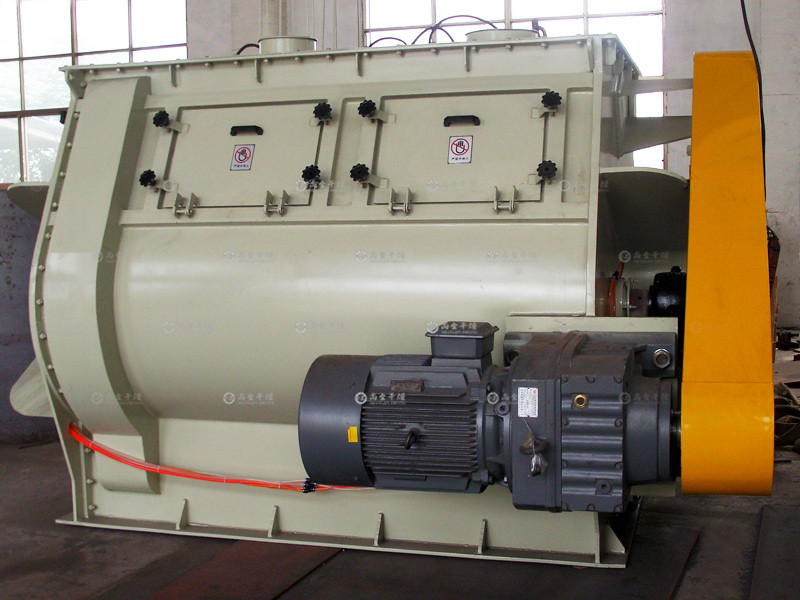

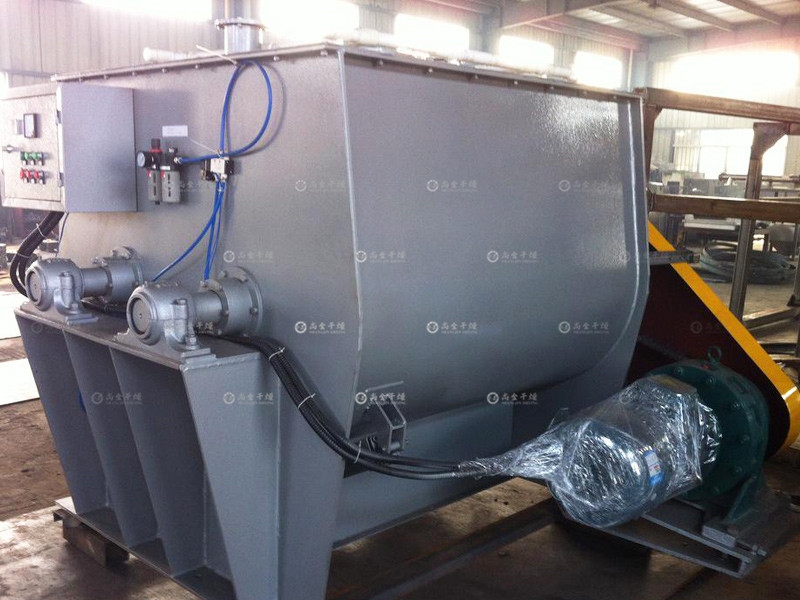

Photo Gallery
