1、 Equipment Overview:

　　Dry granulation machine is a type of equipment that directly processes materials from powder to particles without the need for intermediate processes such as water stirring, mixing, and drying. According to the conveying method, dry granulation machine can be divided into two forms: vertical conveying and horizontal conveying. The horizontal conveying dry granulation machine has good technology, stable performance, and high granulation rate. Our company's dry granulation machine is a horizontal conveying type.

2、 Equipment features:

Compared with other granulation equipment, dry granulation machines have the following characteristics:

a. Direct granulation of dry powder without any binder;

b. The material is mechanically extruded and formed, without damaging the chemical properties of the material and reducing the effective content of the product;

c. The arrangement of pressing wheels up and down eliminates the influence of gravity on the material, ensuring the uniformity of the material before pressing;

d. The gap of the pressing wheel can be adjusted to ensure consistent pressing density and even granulation;

e. Low energy consumption and small footprint;

f. High granulation rate and production efficiency;

g. Equipped with a hydraulic system, the hardness and density of particles can be adjusted;

h. The equipment structure is simple and easy to disassemble and clean;

i. Equipped with a vacuum device to make the tablet denser and have a high granulation rate;

j. Equipped with three types of pattern rollers: mesh, straight, and smooth, matching materials with different characteristics;

k. The control system is equipped with memory, which can store millions of sets of production data;

l. The equipment adopts PLC control, with a beautiful and concise human-machine interface, easy to operate, and easy to learn.

3、 Equipment structure:

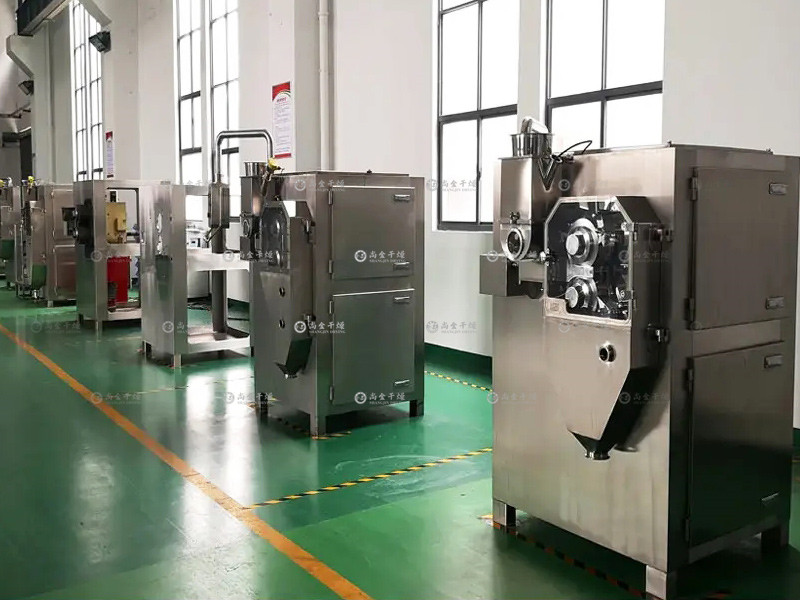

　　The LG series dry granulation machine is a technologically advanced, economical and environmentally friendly product carefully developed by our company. The equipment occupies a small area, is energy-saving and environmentally friendly, and is easy to disassemble and clean. It is an ideal production equipment for large-scale granulation. The equipment mainly consists of the following parts:

1. Feed system; 2. Deceleration directional system; 3. Material conveying device; 4. Extrusion system; 5. Whole grain system; 6. Front cover; 7. Rack; 8. Access door; 9. Control system; 10. Hydraulic system; 11. Air circuit system; 12. Water cooling system; 13. Vibration device
