ZLPG series Chinese medicine extract spray dryer
The high-speed centrifugal spray device for Chinese herbal extracts is the application of centrifugal spray drying technology in the drying of specific materials. It is also a drying device that uses high-speed centrifugal atomizers to disperse materials into mist, fully contact with hot air, complete instant drying, and form powder finished products.
Hotline:
+86151-6111-8388
Details




Product introduction
  The machine is totally enclosed, all parts are made of stainless steel, equipped with a three-stage purification device, and the filtered air reaches 100000 levels. The cylinder and the top are equipped with a cold wall device to make the wall temperature less than 80 ℃. The drying tower is equipped with a gas brush tower device. The dried extract powder of traditional Chinese medicine will not appear coking deterioration, greatly increase the powder collection rate (more than 95%), and will not produce mixing phenomenon and wall sticking phenomenon.

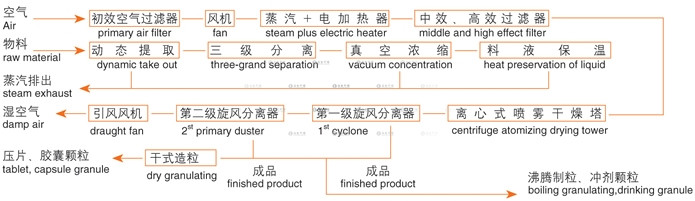

Working principlea.jpg
  The high-speed centrifugal spray device for Chinese herbal extracts is the application of centrifugal spray drying technology in the drying of specific materials. It is also a drying device that uses high-speed centrifugal atomizers to disperse materials into mist, fully contact with hot air, complete instant drying, and form powder products.
Performance characteristics

◎ The tower body has cold air jacket;

◎ The tower body is equipped with automatic rapping device;

◎ The tower body and pipeline are equipped with quick-opening cleaning holes and blowdown holes;

◎ It can be equipped with automatic control thermostatic feeding tank;

◎ It can be equipped with manual high-pressure washing tower accessories;

◎ The part in contact with the material is made of stainless steel; (or made of all stainless steel);

◎ Two-stage cyclone dust removal device, or one stage, is used for material collection;

◎ Cyclone dust collector and wet dust collector;

◎ Automatic control and continuous device for air inlet temperature.

◎ It can be equipped with air scavenging device.




Parameters



ModelZLPG-15ZLPG-20ZLPG-25ZLPG-32ZLPG-38ZLPG-40ZLPG-47ZLPG-52ZLPG-58
Water evaporation510255080100150200300
Feed liquid handling capacity6-712-1425-3450-6880-108100-135150-203200-270300-406
Finished product output1-22-44.8-7.29.2-1414.8-22.418.4-2828-4236.8-56.455-85
Solid content of wet material18-25
Water content of finished product3-5
Electric power36456399132153204246330
Heating sourceSteam+electricity
Product collection method
And primary collection efficiency
One-point or two-point collection: collection of small wheeled vehicles at one time ≥ 95%
Automatic control instrumentAutomatic control and regulation of temperature and pressure, interlocking alarm
Inlet air temperature150-200
Air outlet temperature80-100
Overall dimensionLong5000550070008000980011000122001410015000
 Wide300035004000500057006200700078009000
(mm)Tall4500460052006500760081009000985011100

Note:

★ The actual dimensions can be determined according to the actual situation of the customer. The above dimensions are for reference only.

★ The above evaporation is the maximum evaporation.

VR



Animation

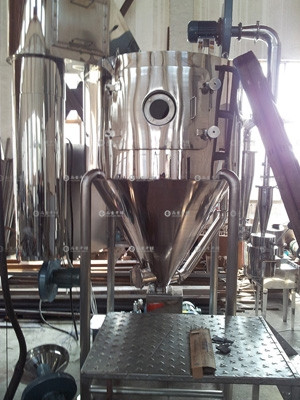

Photo Gallery
