CT-C series hot air circulation oven
CT-C series hot air circulation oven is equipped with low noise and high temperature resistant axial flow fan and automatic temperature control system. The whole circulation system is completely closed, which improves the thermal efficiency of the oven from 3-7% of the traditional drying room to 35-45% at present, and the maximum thermal efficiency can reach 50%.
Hotline:
+86151-6111-8388
Details




Product introduction
  CT-C series hot air circulation oven is equipped with low noise and high temperature resistant axial flow fan and automatic temperature control system. The whole circulation system is completely closed, which improves the thermal efficiency of the oven from 3-7% of the traditional drying room to 35-45% at present, and the maximum thermal efficiency can reach 50%. The successful design of CT-C type hot air circulation oven has made China's hot air circulation oven reach the level at home and abroad. It has saved a lot of energy for our country and improved the economic benefits of enterprises. In 1990, the National Pharmaceutical Administration issued the industry standard, the unified model is RXH.
Applicable materials
  It is suitable for heating, curing, drying and dehydration of materials and products in pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry and other industries. Such as raw materials, crude drugs, Chinese herbal medicines, extracts, powders, granules, granules, water pills, packaging bottles, pigment dyes, dehydrated vegetables, dried fruits and melons, sausages, plastic resins, electrical components, baking paint, etc.



Performance characteristics
  Most of the hot air is circulated in the box, with high thermal efficiency and energy saving. Utilizing the forced ventilation function, the box is equipped with an adjustable air distribution plate, the material is dried evenly, and the heat source can be steam, hot water, electricity, and far infrared, with a wide selection. The whole machine has low noise and balanced operation. Automatic temperature control, easy installation and maintenance. It is a universal drying equipment with a wide range of applications and can dry various materials.

◎ The heating source includes steam, electric, far infrared and electric steam for users to choose;

◎ Operating temperature: steam heating 50~140oC, maximum 150oC;

◎ Power consumption, far-infrared temperature 50~350oC;

◎ Automatic control system and computer control system are available for users to choose;

◎ Common steam pressure 0.02-0.8Mpa (0.2-8kg/m2);

◎ With electric heating, 15KW is calculated according to type I, and 5-8kw/h is practical;

◎ Special requirements shall be explained when ordering;

◎ The price of non-standard oven is negotiable;

◎ If the service temperature is greater than 140oC or less than 60oC, it shall be noted when ordering;

◎ The size of the drying car and drying plate delivered from the factory is uniform and interchangeable;

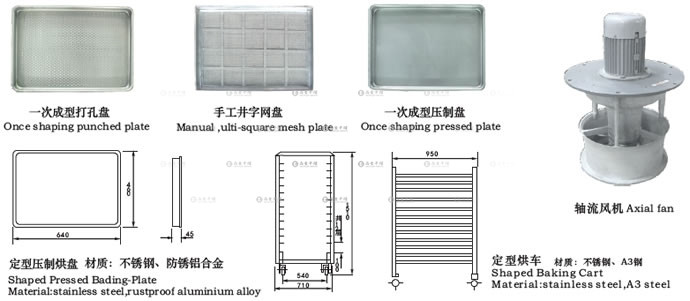

◎ Size of baking tray: 460 × six hundred and forty × 45(mm)。

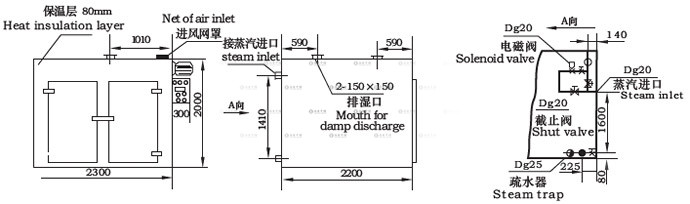

Diagrammatic sketch



Parameters



Industry standard modelTechnical parameter
Model and specification
Drying amount per time
(kg)
Allocated power
(kw)
Steam consumption
(kg/h)
Heat dissipation area
(m²)
Blowing rate
(m³/h)
Upper and lower temperature difference
(oC)
Equipped with baking trayOverall dimension
Face width × depth × high
Supporting drying carEquipment weight
RXH-14-BCT-Ⅰ1201.120202800±2482430×1200×237521200
RXH-27-BCT-Ⅱ2402.240405200±2962430×2200×243341500
RXH-41-BCT-Ⅲ360360808000±21443430×2200×262062000
RXH-54-BCT-Ⅳ4804801009800±21924460×2200×262082300
RXH-5-CCT-C-O250.45553450±2161130×1100×17500800
RXH-7-CCT-C-ⅠA500.4510103450±2241400×1200×200011000
RXH-14-CCT-C-Ⅰ1200.4518203450±2482300×1200×200021500
RXH-27-CCT-C-Ⅱ2400.936406900±2962300×2200×200041800
RXH-27A-CCT-C-ⅡA2400.936406900±2964460×1200×229041800
RXH-41-CCT-C-Ⅲ3601.35548010350±21443430×2200×200062200
RXH-42A-CCT-C-ⅢA3601.35548010350±21442300×3200×200062200
RXH-54-CCT-C-Ⅳ4801.87210013800±21924460×2200×229082800
RXH-25-AThe power matching of high-efficiency high-temperature far-infrared sterilization oven is carried out according to the temperature requirements1200×1000×160011200
VR

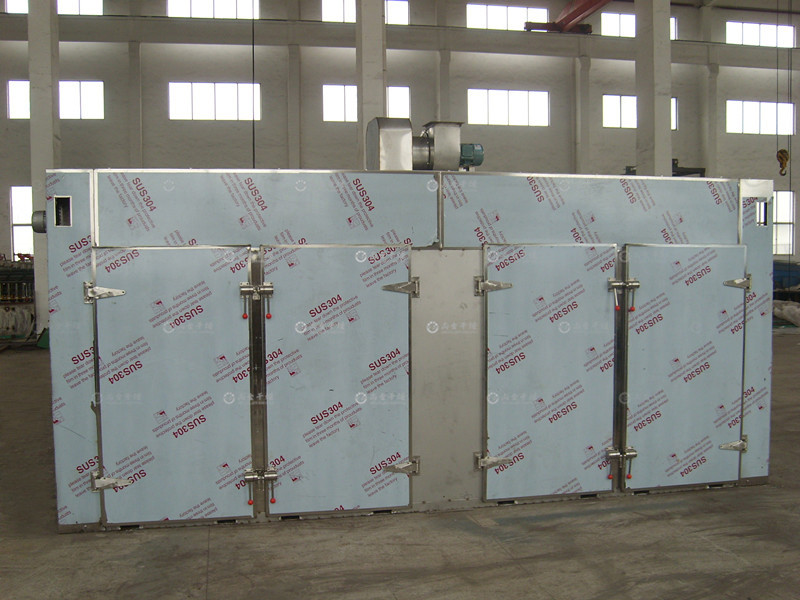

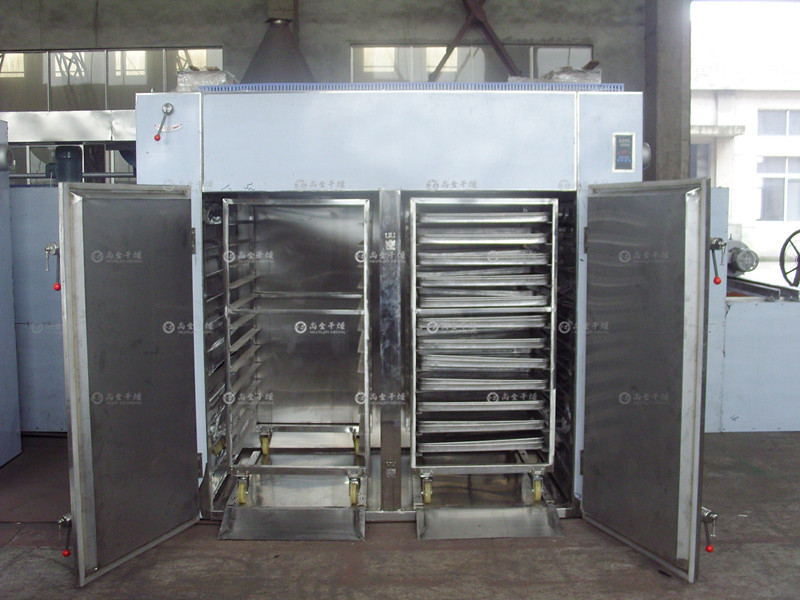

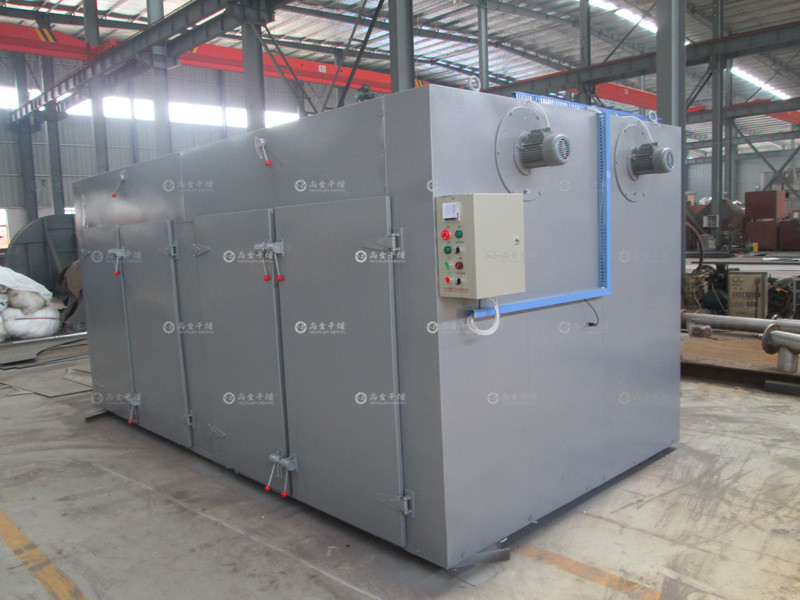

Photo Gallery
