Medicinal GMP oven
There are three types of heating sources for medicinal GMP ovens: steam, electric, and electric steam. The temperature is automatically controlled and recorded by a recorder; The inner walls of the box are fully welded, and various transitions are made using circular arcs without dead corners.
Hotline:
+86151-6111-8388
Details




Product description

◎ There are three types of heating sources: steam, electricity and electric steam.

◎ Operating temperature: steam heating 50-140 ℃, maximum 150 ℃; Electric heating 50-350 ℃;

a.jpg◎ The temperature is automatically controlled and recorded by a recorder;

◎ The inner wall of the box is fully welded, and all transitions are arc transition without dead corners.

◎ The sealing of the whole machine is good, and the unique guide rail sealing device ensures the sealing of the whole machine;

◎ The air inlet is equipped with high-efficiency air filter; The moisture outlet is equipped with medium efficiency air filter.

◎ Double doors of the oven realize mechanical interlocking;

◎ All parts and components in the oven can be removed and installed quickly to facilitate cleaning;

◎ The control system is equipped with text display and touch screen for selection;

◎ The whole machine meets the requirements of "GMP".

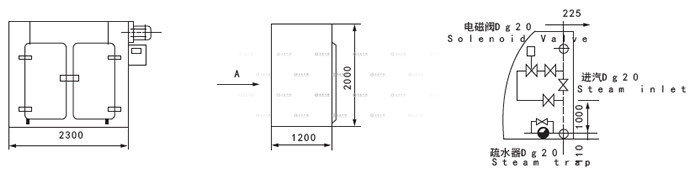

Installation diagram


Parameters



Model and specification
Drying amount per time(kg)
Fan power(kw)
Steam consumption(kg/h)

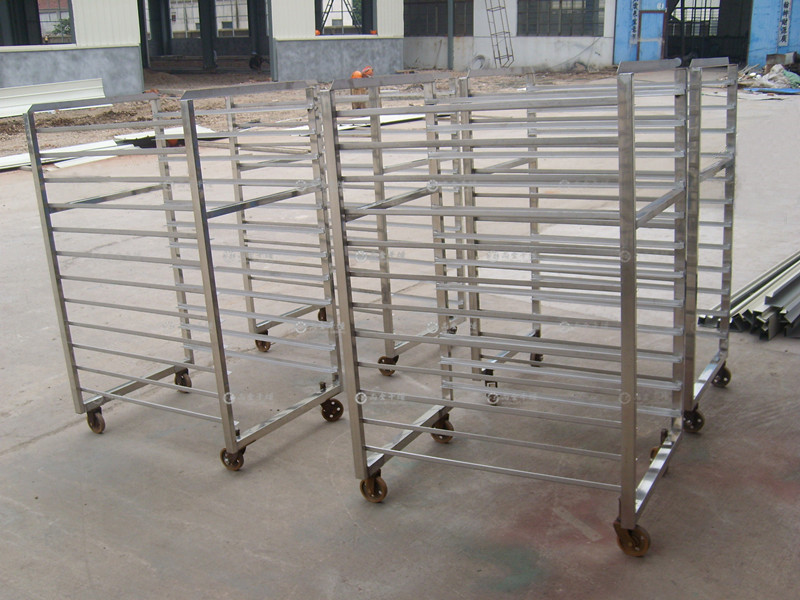

Drying car(set)

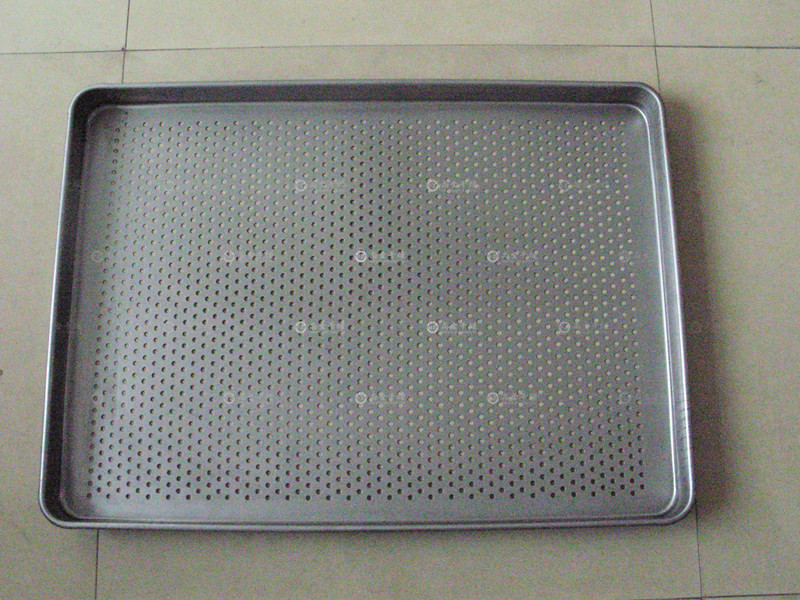

Baking tray(only)
wide × deep × high(mm)
Upper and lower temperature(℃)
GMP-O
35
0.45
8
/
16
1130×1100×1750

±2

GMP-I
120
0.45
18
2
48
2300×1200×2000

±2

GMP-II
240
0.9
36
4
96
2300×2200×2000

±2

GMP-III
360
1.35
54
6
144
3430×2200×2000

±2

GMP-IV
480
1.8
72
8
192
4460×2200×2290

±2

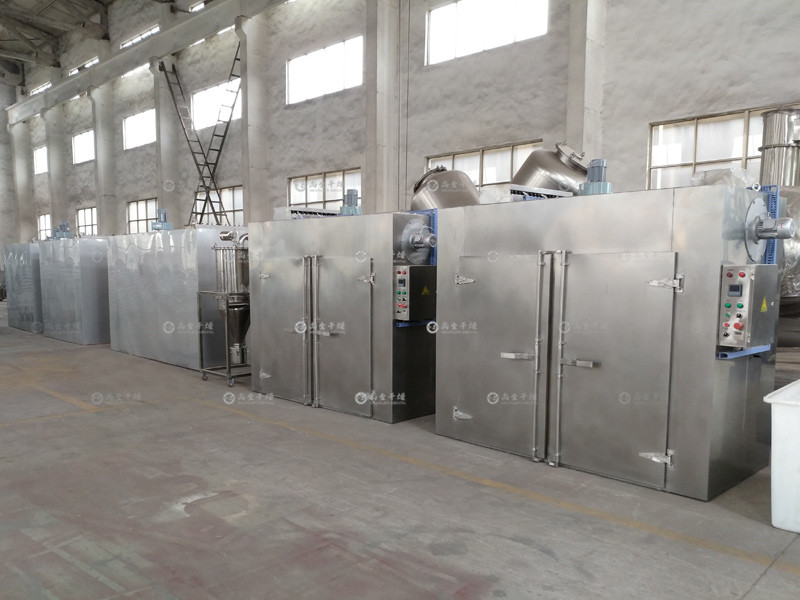

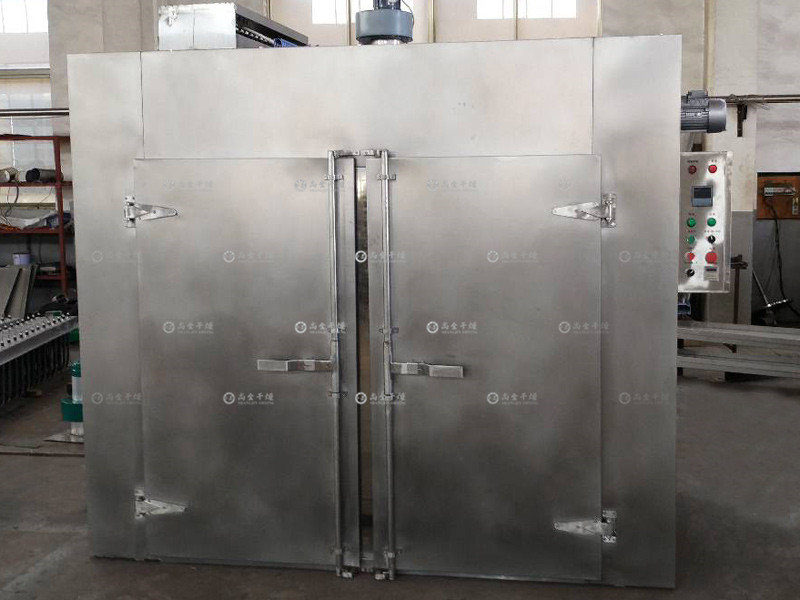

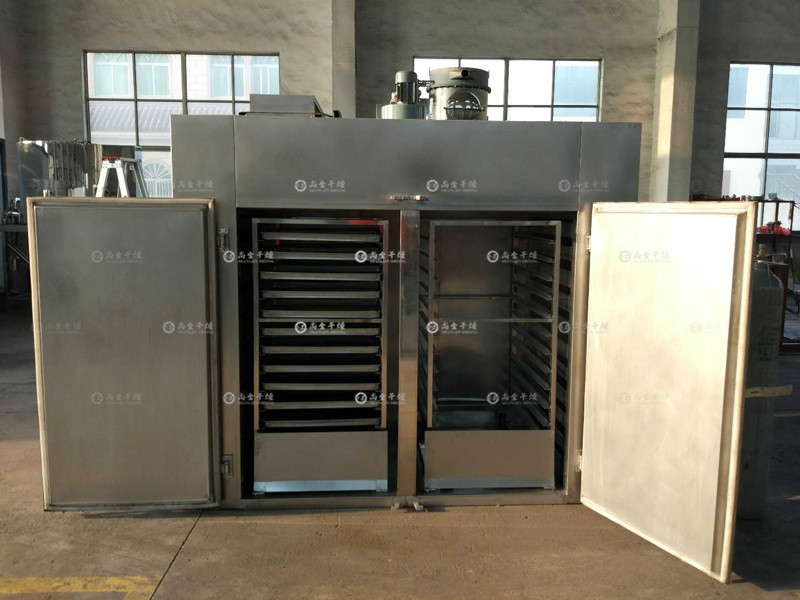

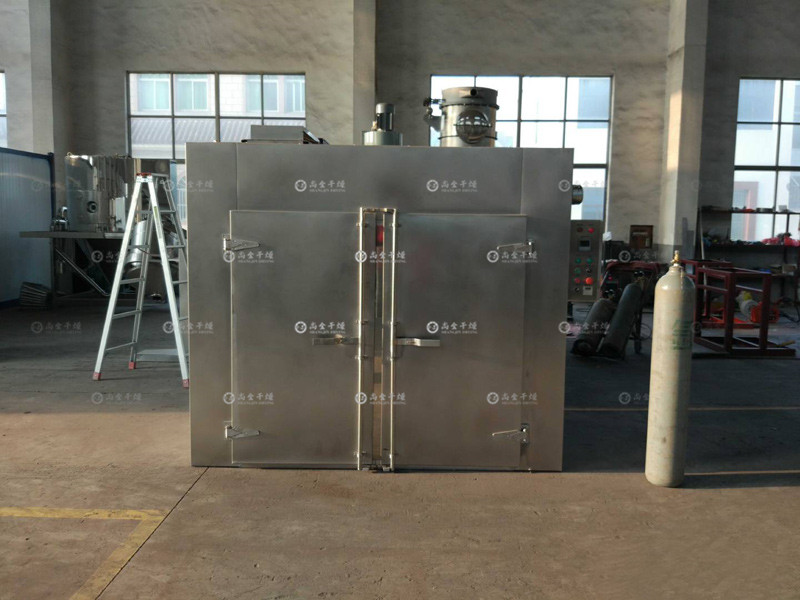

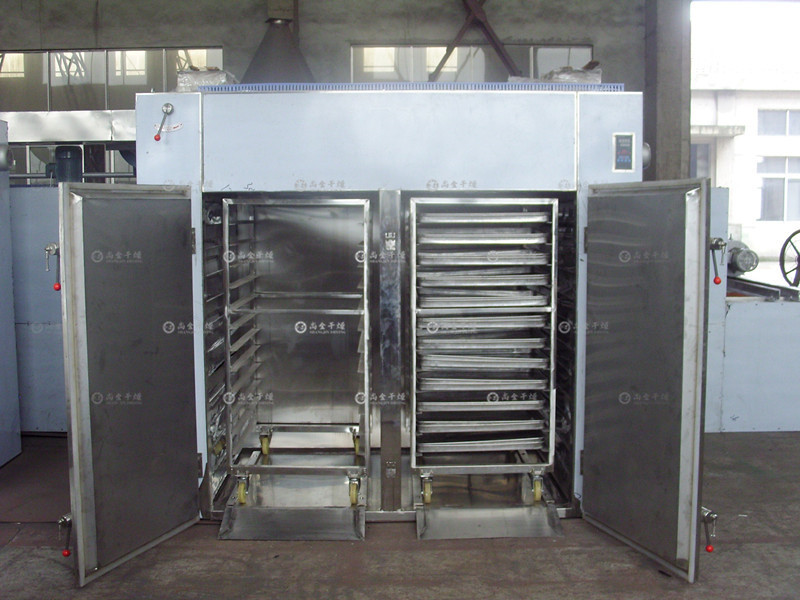

Photo Gallery
